Features:

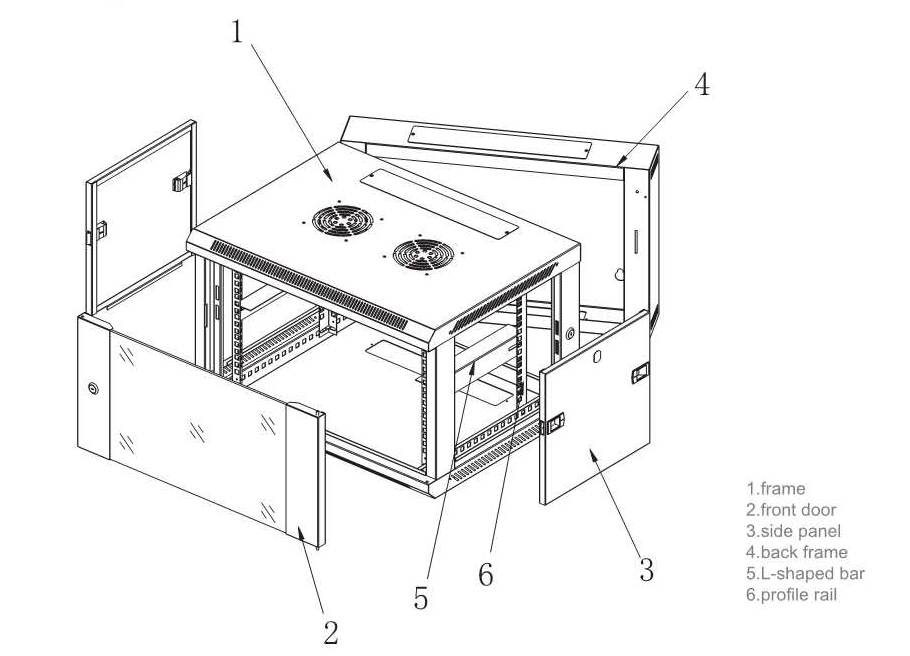

One Section/ Single Section Wall Mount Cabinet
Welded frame, reliable structure
Standing or wall mounting installation
Adjustable feet and heavy duty castors are optional
Removable side panels, side locks optional
Cable entry on both of top cover and bottom panel
120mm fan available (220V or 110V)
Turning angle of front door is over 180 degrees.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard
Material:
High grade cold rolled steel SPCC
Thickness:
Mounting profile: 1.500mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
TAG: Wall Cabinet
