Production Specification:

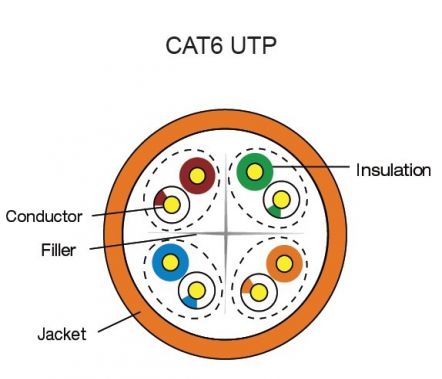

U/UTP unShielded Cat 6A Twisted Pair Installation cable, Solid Bare Copper 23AWG, HDPE Insulation;
8 cores, twisted in 4 pairs, PVC/LSZH Jacket
| Assortment | Shieded | Describe |
| Cat 6 Installation cable | U/UTP unShielded | U/UTP unShielded Cat 6 Twisted Pair Installation cable |
| Conductor | ||||||
| Conductor | Insulation | Qty of Conductor | Color code | Individual pair shied | Overall shield | Drain wire |
| Solid Bare Copper 23AWG | HDPE | 8,twisted in 4 pairs | blue-white, orange-white, green-white, brown-white | none | none | none |
| Outer jacket information | ||
| Item no | Outer jacket | overall diameter(mm) |
| UTP-CAT6 | CMX | 7.5±0.2 |
| UTP-CAT6 | CM | 7.5±0.2 |
| UTP-CAT6 | CMR | 7.5±0.2 |
| UTP-CAT6 | LSZH | 7.5±0.2 |
| UTP-CAT6 | LDPE | 7.5±0.2 |
| Nominal Transmission Characteristics | ||||||||
| Frequence | RL | IL | DOP | SKEW | NEXT | PSNEXT | ACR-F | PSACR-F |
| (MHz) | (dB) | (dB/100M) | (ns) | (ns) | (dB) | (dB) | (dB) | (dB) |
| 1 | 20 | 2.1 | 570 | 45 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.7 | 552 | 45 | 78 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 5.9 | 545 | 45 | 78 | 57.3 | 47.8 | 44.8 |
| 16 | 25.0 | 7.4 | 543 | 45 | 78 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.3 | 542 | 45 | 78 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.4 | 540 | 45 | 78 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 14.9 | 539 | 45 | 75.5 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.0 | 538 | 45 | 72.4 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 27.5 | 537 | 45 | 67.9 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 34.2 | 536 | 45 | 65.2 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 40.0 | 536 | 45 | 63.4 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 536 | 45 | 61.9 | 31.8 | 13.8 | 10.8 |
| Note: The above transmission performance for the 100M,20±2 degree under the condition tested | ||||||||
Appliacation
1. Meets or exceeds requirments of ANSI/TIA-568-C. 2 Category 6 and ISO 11801 2nd Edition Class EA channel standards.
2. Meets or exceed requirements of ANSI/TIA-568-C. 2 and IEC 61156-5 Category 6 Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for POE applications.
4. Third party tested to comply with ANSI/TIA/EIA-568-C. 2
5. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 1-250MHz 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
