Features:

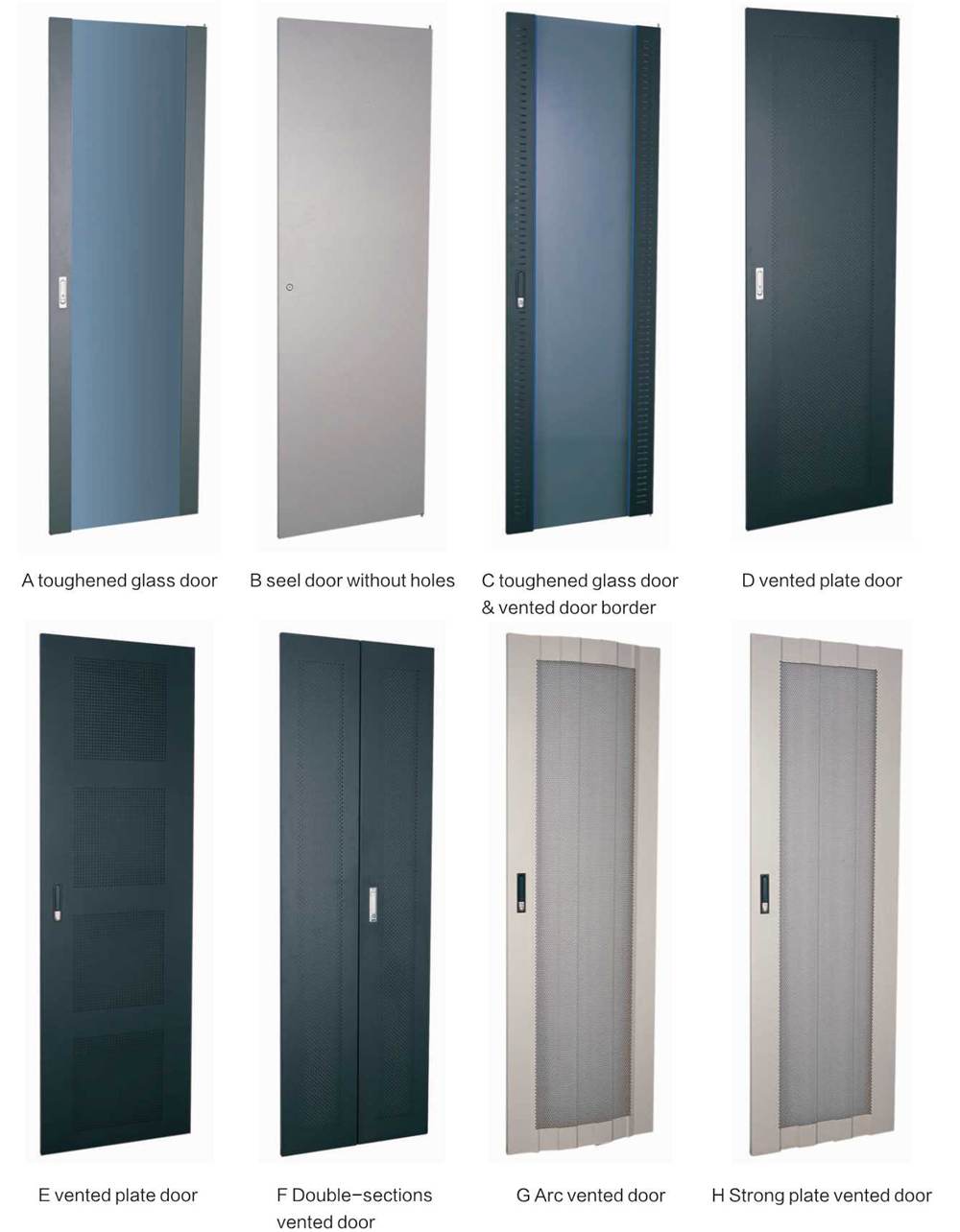

High-density ARC vented front single &rear dual doors, two section side panel.
Standard enclosure for low to medium density server and networking applications.
Compact width to optimize data center space.
Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard
Material:
High grade cold rolled steel SPCC
Thickness:
Mounting profile: 2.00mm others: 1.2–1.5mm
Loading Capacity:
Static Loading: 1000kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19” keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19” Power distribution unit(PDU)
19” Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
| AX-APC | 18U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 988mm |
| AX-APC | 22U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1166mm |
| AX-APC | 27U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1388mm |
| AX-APC | 32U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1610mm |
| AX-APC | 37U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1833mm |
| AX-APC | 42U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2055mm |
| AX-APC | 45U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2188mm |
| AX-APC | 47U | 600mm/750mm/800mm | 600mm/800mm/1000mm /1200mm | 2277mm |
