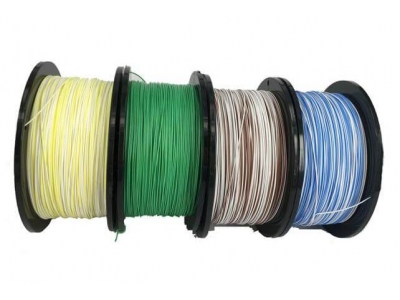

UL10086 High Temperature Resistant Hook-up Wire
Tinned silver or copper, stranded or solid copper conductor, 36-4/0 AWG, ETFE insulation
Product description
- Rated temperature : 150°C or 200°C
- Rated voltage : 600V
- Reference standard : UL 758, UL1581 & CSA C22.2 No. 210
- Passes UL VW-1 & CSA FT1 vertical flame test
Conductor | Insulation | Electrical Properties | Packing | |||
AWG | Conductor Construction | Diameter | Thickness | Overall | Max.Conductor Resistance | M/Coil |
(NO./mm) | (mm) | (mm) | Diameter | DC 20℃ Ω/Km | ||
(mm) | ||||||
10 | 37/0.43 | 3.01 | 0.51 | 4.03 | 3.546 | 305 |
12 | 19/0.49 | 2.45 | 0.51 | 3.47 | 5.64 | 305 |
14 | 19/0.37 | 1.85 | 0.51 | 2.87 | 8.96 | 305 |
16 | 19/0.30 | 1.5 | 0.51 | 2.52 | 14.6 | 305 |
17 | 19/0.26 | 1.3 | 0.51 | 2.32 | 18.3 | 305 |
18 | 19/0.23 | 1.15 | 0.51 | 2.17 | 23.2 | 305 |
20 | 19/0.18 | 0.9 | 0.51 | 1.92 | 36.7 | 305 |
1/0.80 | 0.8 | 0.51 | 1.82 | 35.2 | 305 | |
22 | 19/0.16 | 0.8 | 0.51 | 1.82 | 59.4 | 610 |
1/0.65 | 0.65 | 0.51 | 1.67 | 56.4 | 610 | |
24 | 7/0.20 | 0.6 | 0.51 | 1.62 | 94.2 | 610 |
1/0.50 | 0.5 | 0.51 | 1.52 | 89.3 | 610 | |
26 | 7/0.16 | 0.48 | 0.51 | 1.5 | 150 | 610 |
1/0.40 | 0.4 | 0.51 | 1.42 | 143 | 610 | |
28 | 7/0.12 | 0.36 | 0.51 | 1.38 | 239 | 610 |
1/0.32 | 0.32 | 0.51 | 1.34 | 227 | 610 | |
30 | 7/0.10 | 0.3 | 0.51 | 1.32 | 381 | 610 |
1/0.254 | 0.254 | 0.51 | 1.274 | 361 | 610 | |
