Features:

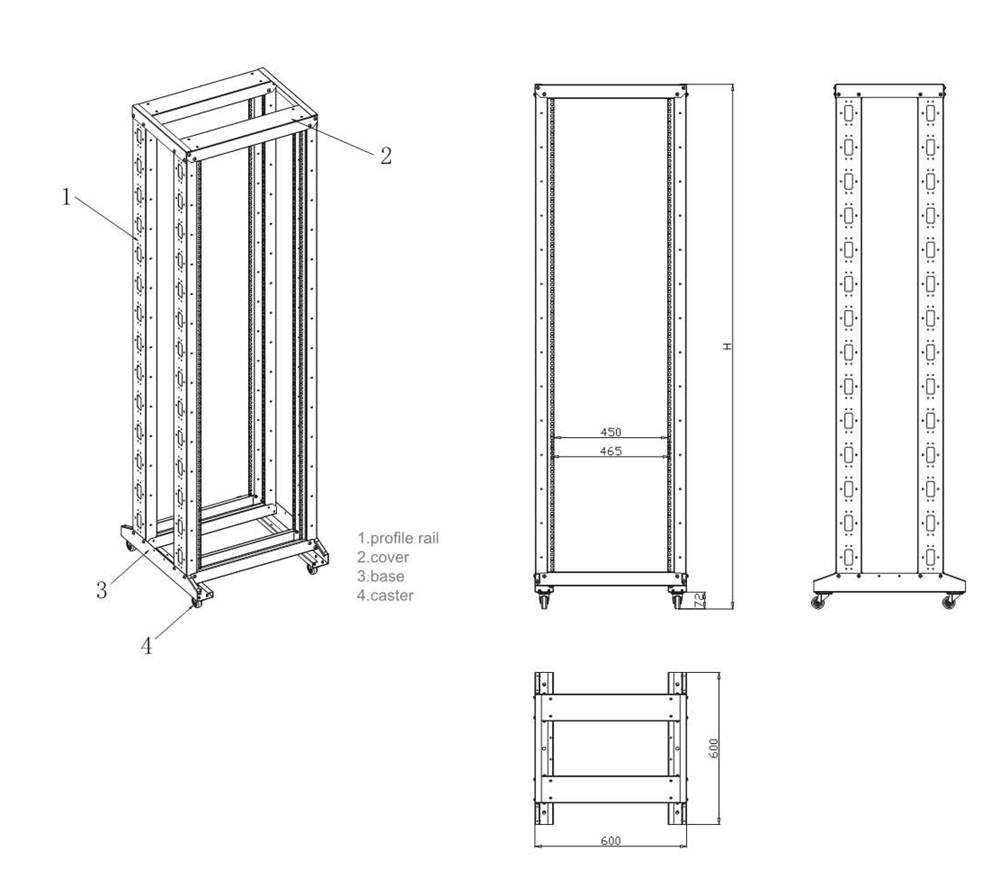

Open Rack
Modular Design, Easy Assembled and Disassembled for Delivery, Low-Cost
Various Optional Accessories According to Requirements
Cable Management Slot, Removable Working Panel etc.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard
Material:
High grade cold rolled steel.
Thickness:
Body: 1.50mm
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Body Color:
RAL7035, RAL9004 etc.
Model No. | Capacity (U) | WidthxDepth (mm) |
AX-OC | 4 | 600x600 |
AX-OC | 6 | 600x600 |
AX-OC | 9 | 600x600 |
AX-OC | 12 | 600x600 |
AX-OC | 15 | 600x600 |
AX-OC | 18 | 600x600 |
AX-OC | 22 | 600x600 |
AX-OC | 27 | 600x600 |
AX-OC | 18 | 600x800 |
TAG: 4_post_open_rack 4 Post Open Rack
