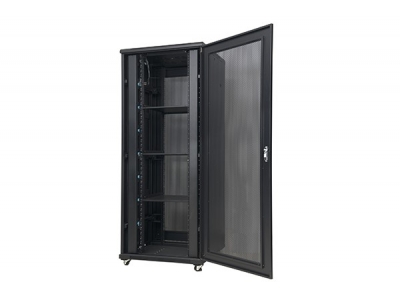

19inch Network Cabinet

Features:

Exquisite design with precise dimension and craftsmanship
Toughened temper glass door front with door boarder and high-density vented rear door
Fully adjustable vertical mounting rails
Lockable door and side panels for system security.
Standard enclosure for low to medium density server and networking applications.
Compact width to optimize data center space.
Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.
Swiveling wheels and legs can be jointly installed to with stand up to 1000kg maximum static load
Several lockable wiring holes on top/bottom,size of the large hole at the bottom adjustable

Standard:

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard

Material:

High grade cold rolled steel SPCC

Thickness:

Mounting profile: 2.00mm others: 1.2–1.5mm

Loading Capacity:

Static Loading: 1000kgs

Surface finish:

Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19” keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19” Power distribution unit(PDU)
19” Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
